Suitable for sealing EVA tubes, including model GSR0501AU
Macoseal twin EVA mini bag
REF.9MSL3622
High-frequency EVA tube sealer – Kit comprising 1 generator + 1 hand sealer suitable for the EVA Mini 3D bag.
The Macoseal TWIN EVA Mini Bag offers a compact, mobile and secure solution. This kit includes a generator and a suitable manual clamp, ideal for demanding environments such as laboratories, blood banks or production units.

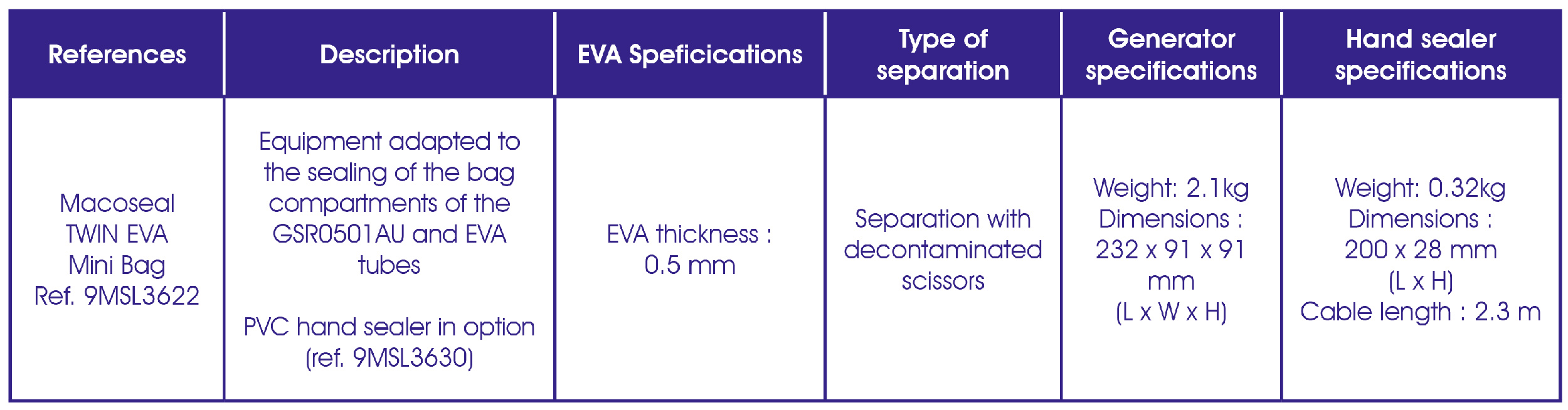

| References | Description | EVA Specifications | Type of separation | Generator specifications | Hand sealer specifications |
|---|---|---|---|---|---|
|
Macoseal TWIN EVA Mini Bag Ref. 9MSL3622 |
Equipment adapted to the sealing of the bag compartments of the GSR0501AU and EVA tubes PVC hand sealer in option (ref. 9MSL3630) |
EVA thickness: 0.5 mm | Separation with decontaminated scissors |
Weight: 2.1 kg Dimensions: 232 x 91 x 91 mm (L x W x H) |
Weight: 0.32 kg Dimensions: 200 x 28 mm (L x H) Cable length: 2.3 m |
Includes 1 generator + 1 EVA hand clamp
2.3 m cable for maximum freedom of movement during use
Automatic detection of welding parameters according to the type of tube
Automatic shut-off of heating after welding. Green LED indicator to release
This information is for exclusive use of healthcare professionals.
The products are not available in every country, please contact your sales representative.
