Transfusion • Category : Plasma Preparation

THERAFLEX MB-Plasma disposable sets

SDV system
Especially designed for single donor units of plasma collected from Whole Blood

ZDV system
Especially designed for single donor units of plasma collected from aphaeresis;
It is used in combination with BRV system

All disposable sets are easy to handle for the production team

THERAFLEX MB-Plasma
disposable set

A user-friendly and effective pathogen inactivation technique against enveloped and non-enveloped viruses designed for single units of plasma

SDV system

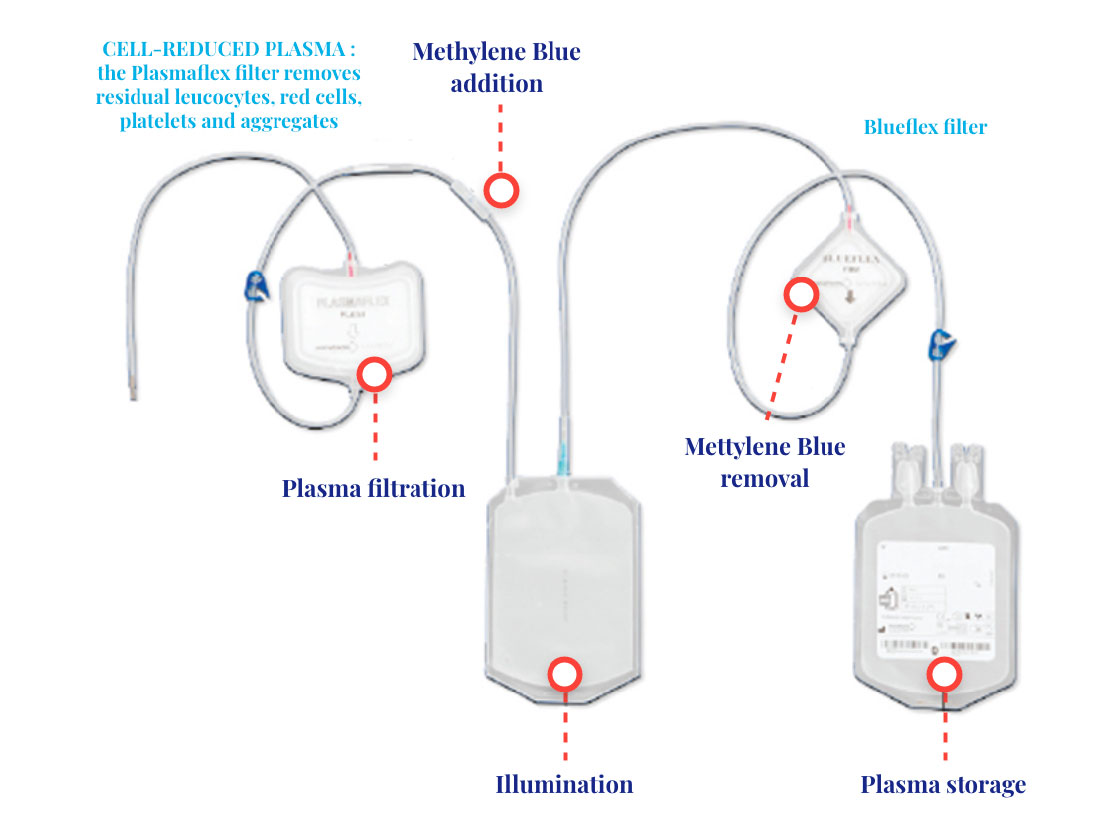

The THERAFLEX MB-Plasma kit incorporates a dockable set suitable for both whole blood and
aphaeresis plasma. The process requires a simple dry set consisting of:

a Plasmaflex filter (PLAS4) for leukoreduction, removal of
residual red cells, platelets and aggregates

a Methylene Blue pill (85μg anhydrous MB chloride)

an illumination bag

a Blueflex filter for Methylene Blue (MB) and photoproduct retention

and a storage bag

The initial plasma volume range to be connected to the
THERAFLEX MB-Plasma system is 235ml-330ml.

More information ? Contact us !

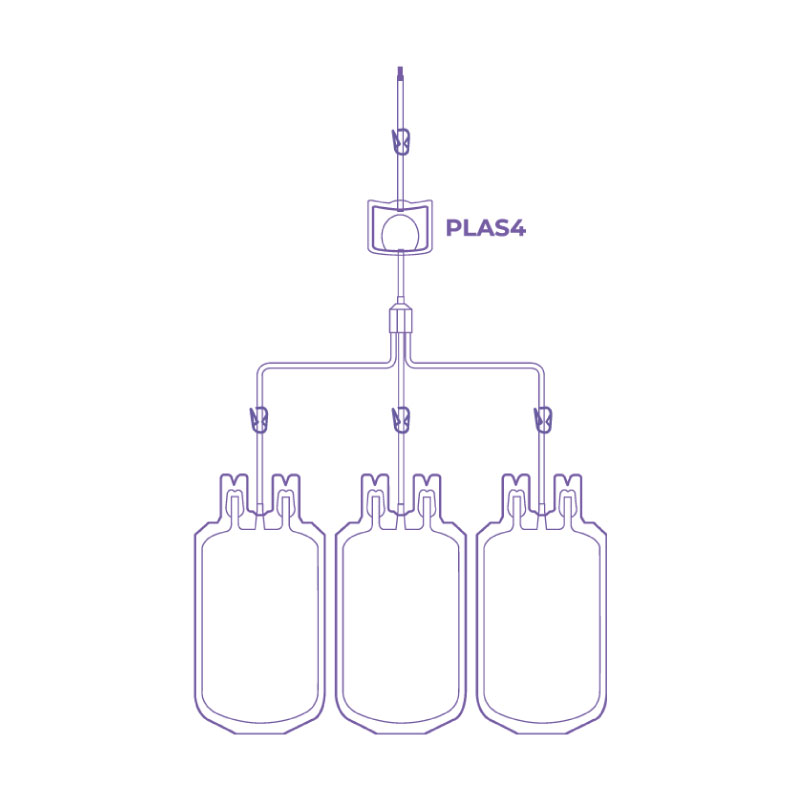

BRV System

Configuration to treat high plasma volume ranges

From 455ml up to 960ml

Final products : 3 inactivated plasma units (207ml – 302ml)

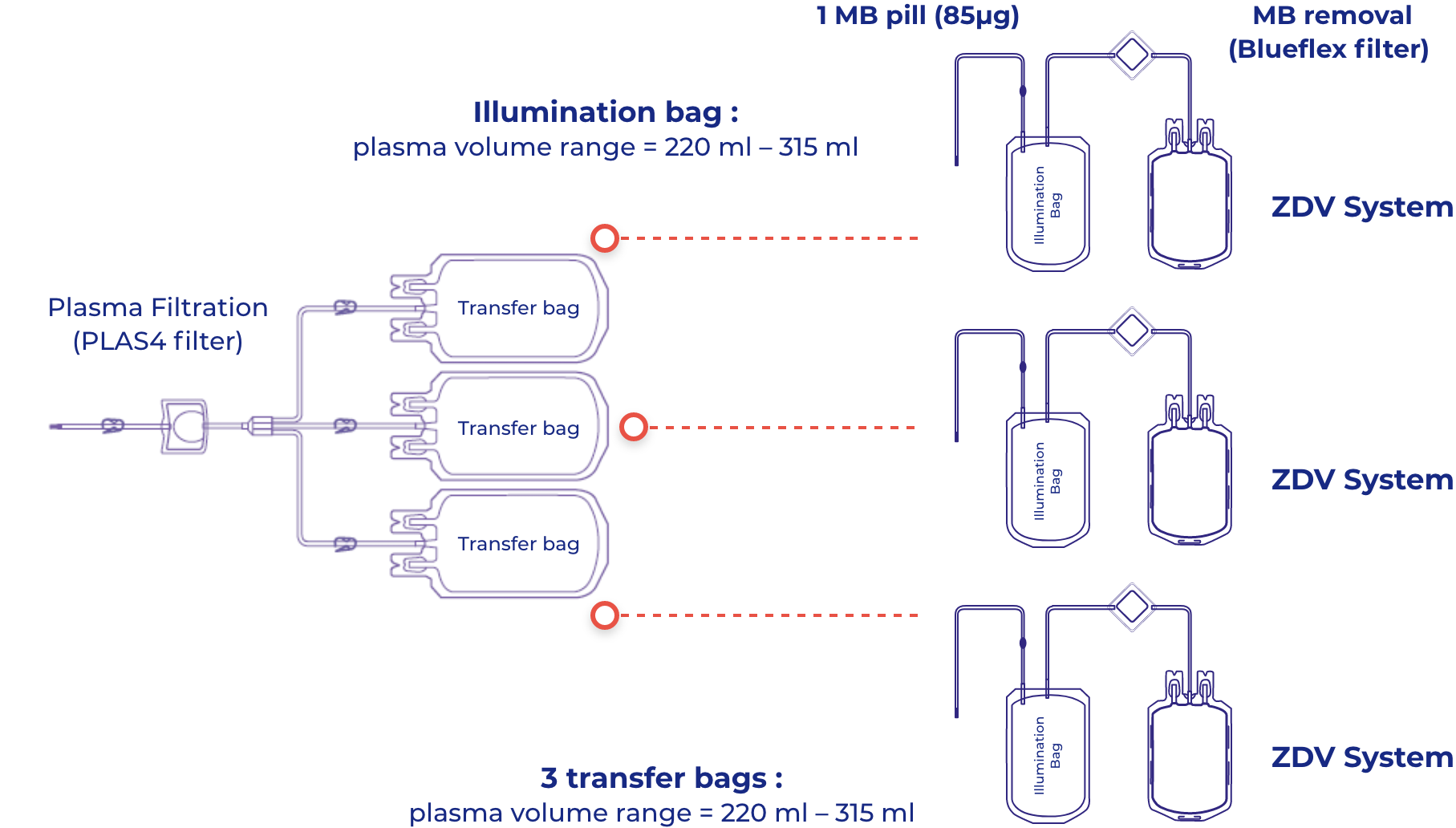

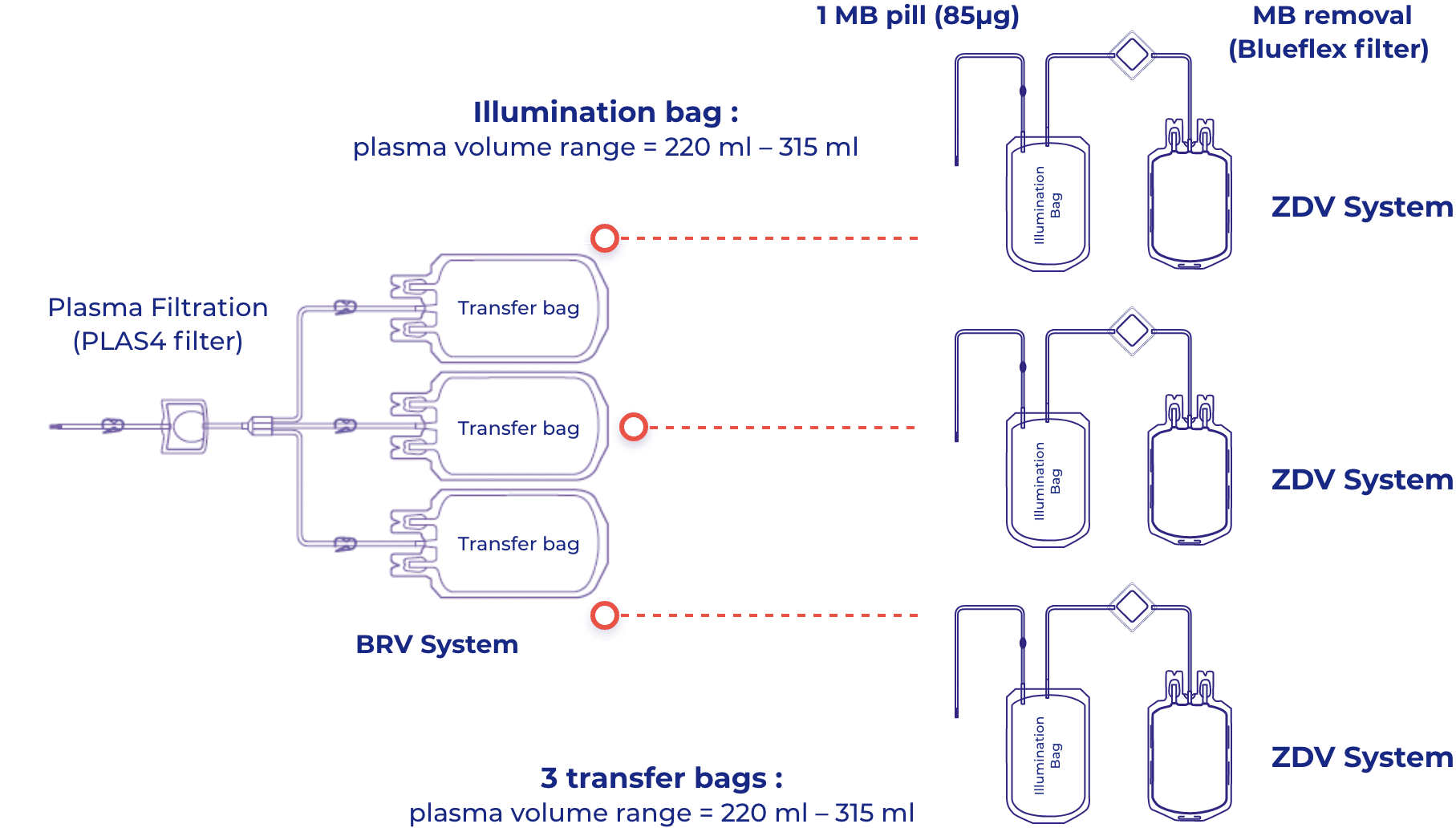

The filtration of big volumes of plasma (collected by aphaeresis) by the PLAS4 filter is the first step
to be performed, using the BRV configuration, before splitting plasma big volumes into up to 3 units.
Each of the 3 units will be connected to a ZDV System for plasma inactivation.

Plasma loss during PLAS4 filtration is about 15mL

Plasma volume range after leukoreduction and before illumination should be
220-315mL (to be connected to ZDV configurations)

Inactivation is performed on each plasma units (220-315mL) using 2 or 3 ZDV configurations
depending on aphaeresis plasma volume

From a high aphaeresis plasma volume (> 675mL) you will get 3 methylene blue treated
therapeutic units with a minimum plasma volume of 207mL per unit

From a volume of aphaeresis plasma (< 645mL) you will get 2 methylene blue treated
therapeutic units with a minimum plasma volume of 207mL per unit

For more information about Plasmaflex dockable leukoreduction filter, please click here

BRV System

PLASMAFLEX Dockable leukoreduction
filter (PLAS4)

Especially designed to leucoreduce high volumes of plasma collected from aphaeresis and to divide it into 3 therapeutic units; It is a dockable plasma system suitable to be used with ZDV system for plasma inactivation.

For more information about Plasmaflex dockable leukoreduction filter, please click here

More information ? Contact us !
